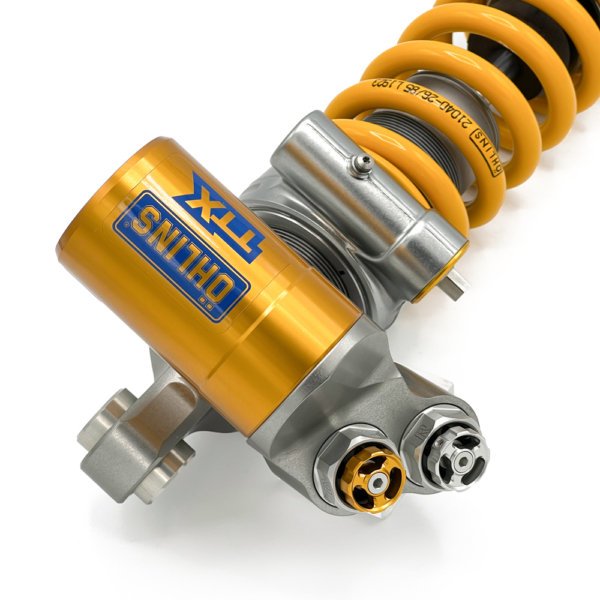

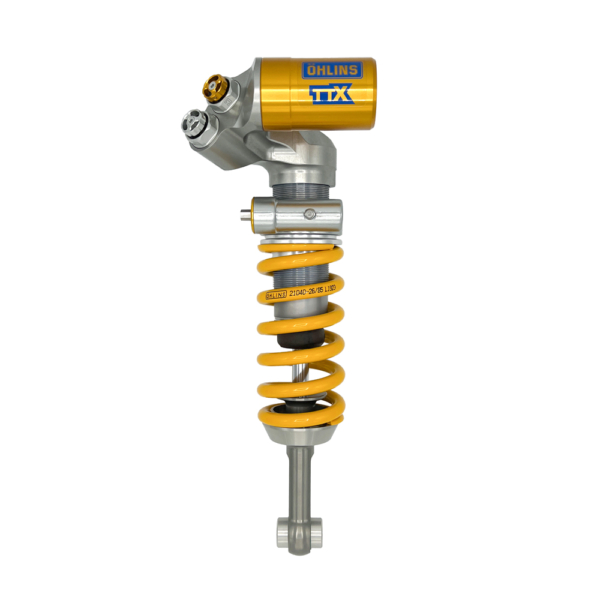

Öhlins rear shock TTX GP BM 569

Beschreibung

Straight from the champions – the new TTX GP is Öhlins latest range of shock absorbers for sport and supersport bikes.
Öhlins are continuously striving to improve their products on quality, consistency, and performance. From our latest research and development, we have made many components and setting improvements that we have combined into this shock. The TTX GP features a new type of valve which gives better feedback to the rider, also a new piston and band which together with the new valves enhances grip, stability, feedback, and consistency. The new adjuster knobs make it easier to make changes on the fly with or without tools compared to the old design.

– TTX-technology
– Rebound and compression adjustment straight from MotoGP
– Adjustment needles with different flow restriction behavior to improve chassis feedback
– Wider and more precise adjustment range
– Improved traction and grip
– Better ground contact feel
– Less hysteresis, improved dynamics of the shock absorber
– Completely separated functionality for rebound and compression damping
– Adjustments are done on the head of the shock absorber
– Adjustment possible by hand or with hexagon tool

Technical data
Length: 369 mm
Stroke: 60 mm
Rate N/mm: 85 N/mm
Mounted spring: 21040-26
Spring series: 21040-xx

Please note:
The rear shock can only be mounted with OEM swingarm and OEM linkage.

Weight: 3.252 kg
